各redis的ip和端口如下：
主(redis-mater)：192.168.26.75:16379
从(redis-slaveof)：192.168.26.73:6380
三哨兵：(sentinel-26379)：192.168.73:26379
(sentinel-26380)：192.168.74:26380
(sentinel-26381)：192.168.75:26381
docker部署流程：
下载redis镜像
创建主data文件夹
1
| mkdir /home/yanwq/docker_data/redis/redis_data/data
|
docker运行主redis
1
| docker run --name redis-master --net=host -v /home/yanwq/docker_data/redis/redis_data1/data:/data -d redis:5.0.9 redis-server --port 16379
|
创建从data1文件夹
1
| mkdir /home/yanwq/docker_data/redis/redis_data1/data
|
docker运行从redis
1
| docker run --name redis-slaveof --net=host -v /home/yanwq/docker_data/redis/redis_data1/data:/data -d redis:5.0.9 redis-server --slaveof 192.168.26.75 16379 --port 6380
|
查看集群是否成功
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| docker exec –it redis-master bash
redis-cli -p 16379
info replication
//范例结果
# Replication
role:master
connected_slaves:1
slave0:ip=192.168.26.73,port=6380,state=online,offset=43329,lag=1
master_replid:62e00c7324e572561d197106981439b3741ab908
master_replid2:0000000000000000000000000000000000000000
master_repl_offset:43613
second_repl_offset:-1
repl_backlog_active:1
repl_backlog_size:1048576
repl_backlog_first_byte_offset:1
repl_backlog_histlen:43613
|
创建哨兵配置
sentinel-26379
1
2
| mkdir /home/yanwq/docker_data/redis/sentinel/sentinel1
mkdir sentinel-26379.conf
|
cd sentinel-263.79.conf 配置内容如下：
1
2
3
4
5
6
7
| protected-mode no
bind 0.0.0.0
port 26379
daemonize no
sentinel monitor mymaster 192.168.26.75 16379 2
sentinel down-after-milliseconds mymaster 5000
sentinel failover-timeout mymaster 180000
|
sentinel-26380
1
2
| mkdir /home/yanwq/docker_data/redis/sentinel/sentinel2
mkdir sentinel-26380.conf
|
cd sentinel-263.80.conf 配置内容如下：
1
2
3
4
5
6
7
| protected-mode no
bind 0.0.0.0
port 26380
daemonize no
sentinel monitor mymaster 192.168.26.75 16379 2
sentinel down-after-milliseconds mymaster 5000
sentinel failover-timeout mymaster 180000
|
sentinel-26381
1
2
| mkdir /home/yanwq/docker_data/redis/sentinel/sentinel3
mkdir sentinel-26381.conf
|
cd sentinel-263.81.conf 配置内容如下：
1
2
3
4
5
6
7
| protected-mode no
bind 0.0.0.0
port 26379
daemonize no
sentinel monitor mymaster 192.168.26.75 16379 2
sentinel down-after-milliseconds mymaster 5000
sentinel failover-timeout mymaster 180000
|
docker运行哨兵
哨兵sentinel-26379
1
| docker run -it --name sentinel-26379 --net=host -v /home/yanwq/docker_data/redis/sentinel/sentinel1/sentinel-26379.conf:/usr/local/etc/redis/sentinel-26379.conf -d redis:5.0.9 redis-sentinel /usr/local/etc/redis/sentinel-26379.conf
|

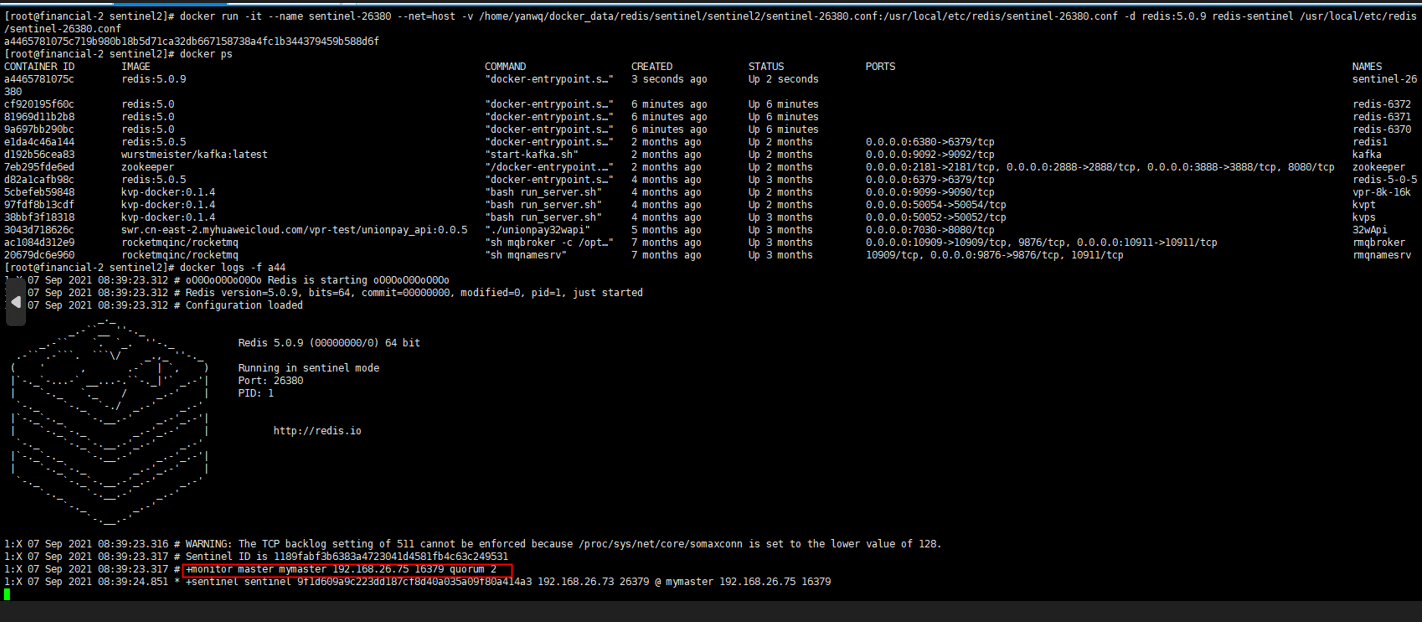

查看日志
1
| docker logs -f sentinel-26379
|
哨兵sentinel-26380
1
| docker run -it --name sentinel-26380 --net=host -v /home/yanwq/docker_data/redis/sentinel/sentinel2/sentinel-26380.conf:/usr/local/etc/redis/sentinel-26380.conf -d redis:5.0.9 redis-sentinel /usr/local/etc/redis/sentinel-26380.conf
|
查看日志
1
| docker logs -f sentinel-26380
|
哨兵sentinel-26381
1
| docker run -it --name sentinel-26381 --net=host -v /home/yanwq/docker_data/redis/sentinel/sentinel3/sentinel-26381.conf:/usr/local/etc/redis/sentinel-26381.conf -d redis:5.0.9 redis-sentinel /usr/local/etc/redis/sentinel-26381.conf
|

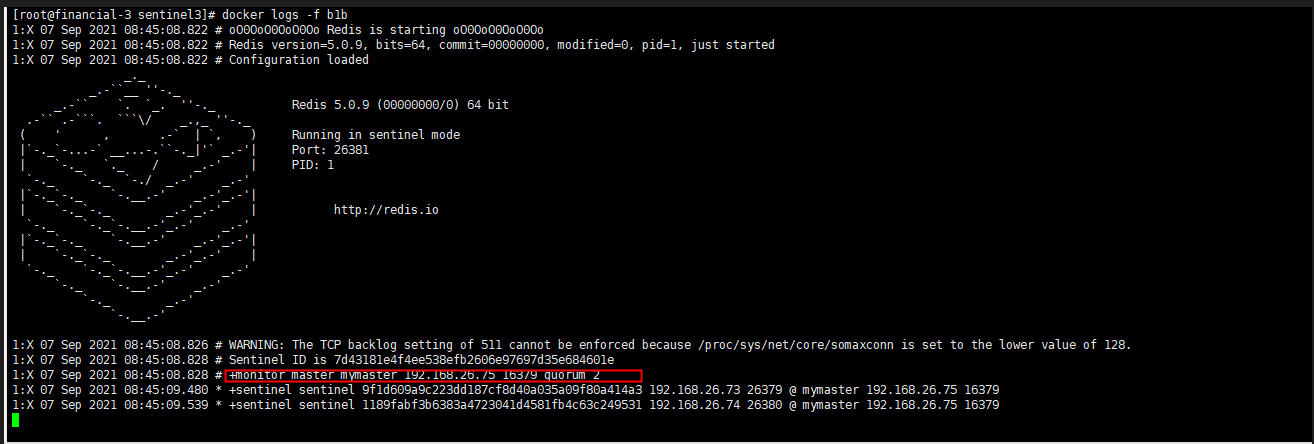

查看日志
1
| docker logs -f sentinel-26381
|
查看集群+哨兵是否成功

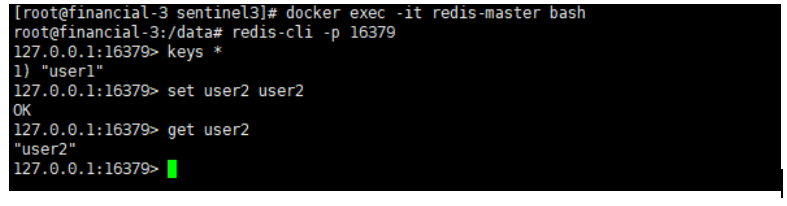

进入主redis中执行
1
2
3
4
5
| docker exec -it redis-master bash
redis-cli -p 16379
keys * // (empty list or set)
set user1 user1 //OK
get user1 //"usre1"
|

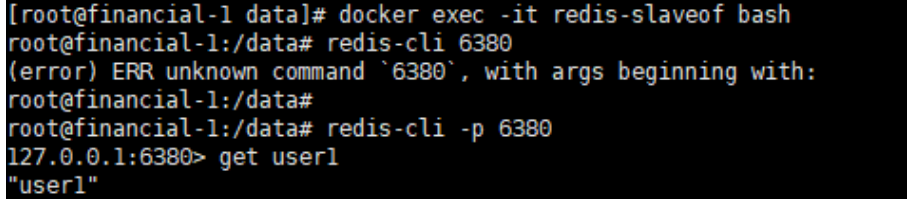

进入从redis中查看
1
2
3
| docker exec -it redis-slaveof bash
redis-cli -p 6380
get user1 //"user1"
|

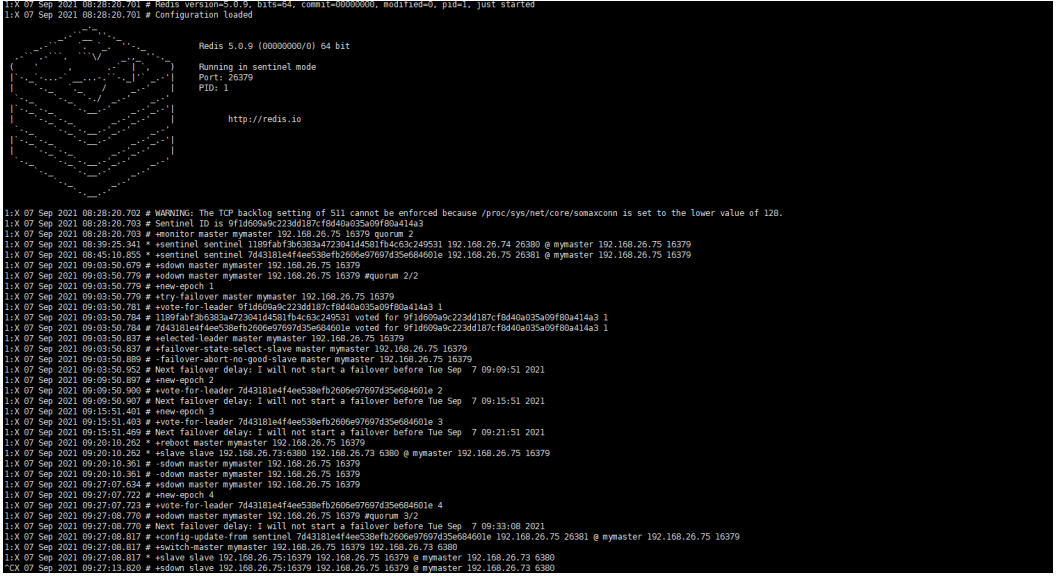

停掉主redis服务,打开3个会话查看哨兵日志
1
2
3
4
| docker stop redis-master
docker logs -f sentinel-26379
docker logs -f sentinel-26380
docker logs -f sentinel-26381
|
